CQ60X-555
Voltage：3V/6V/9V/12V/24V/36V
Speed：1-1000RPM
Scope of application:Household equipment, washing machine, office equipment, automatic door,Electronic advertising, entertainment equipment,telescopes, power tools, etc ...
Hotline： +86 574 62199590
Product Video

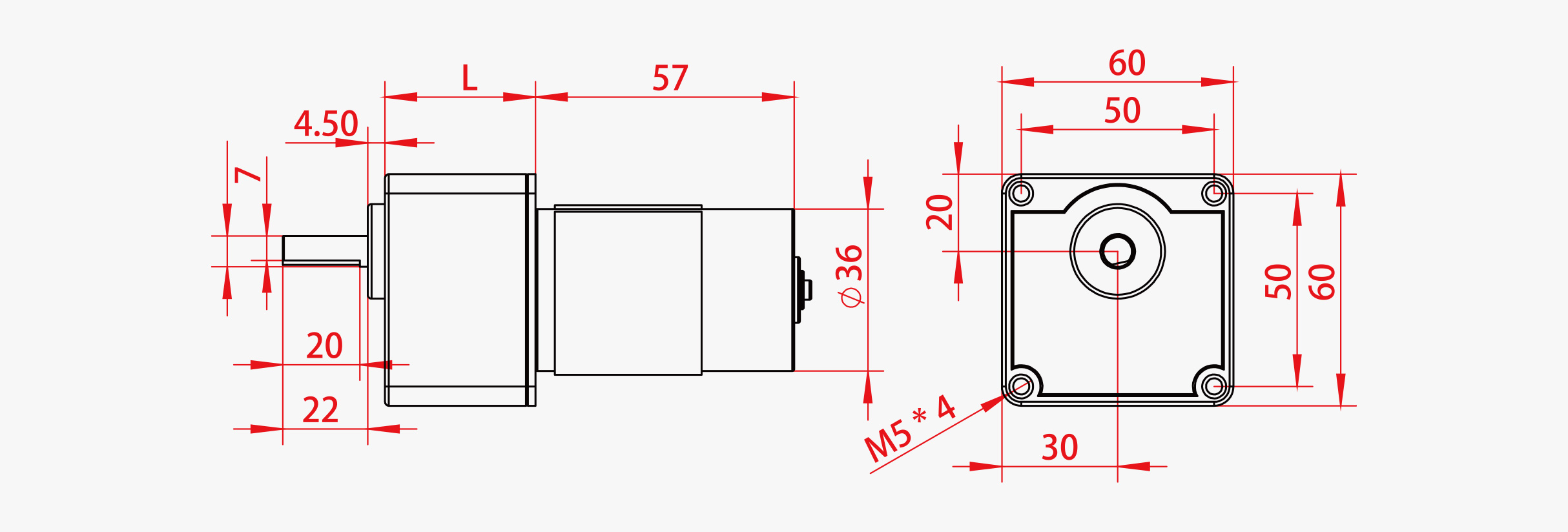

Dimensions
Performance parameter
Gearbox Parameters
|
Number of stages |
Reduction ratio |
Running torque |
Gear efficiency |
|---|---|---|---|
| 3 | 1:33 | 30kgf.cm | 75% |
| 4 | 1:120 | 40kgf.cm | 65% |
| 5 |
1:432 |
50kgf.cm |
60% |

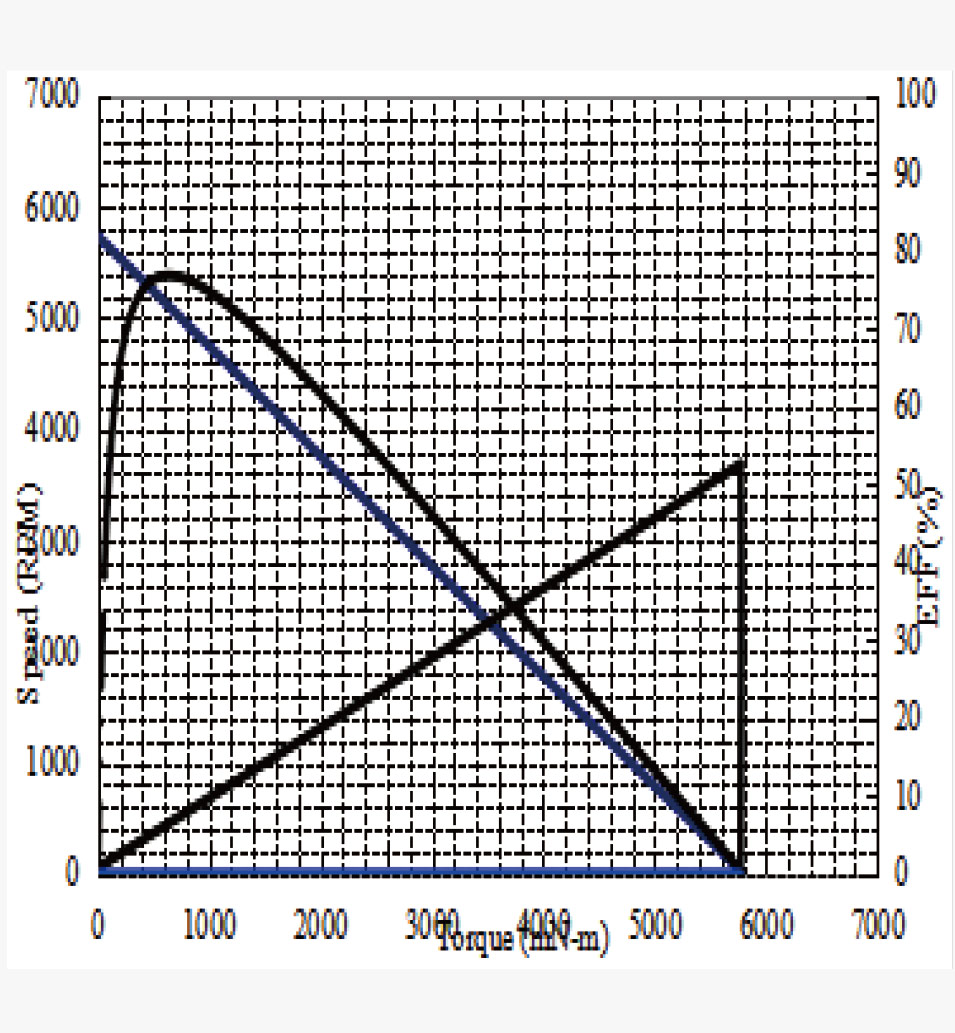

Performance graph
