CQF-555
Voltage：6V/12V/24V/36V/48V
Speed：2-500RPM
Scope of application: household equipment, office equipment printing machines, shredders,Robot arms, entertainment equipment automotive equipment, power tools, etc ...
Hotline： +86 574 62199590
Product Video

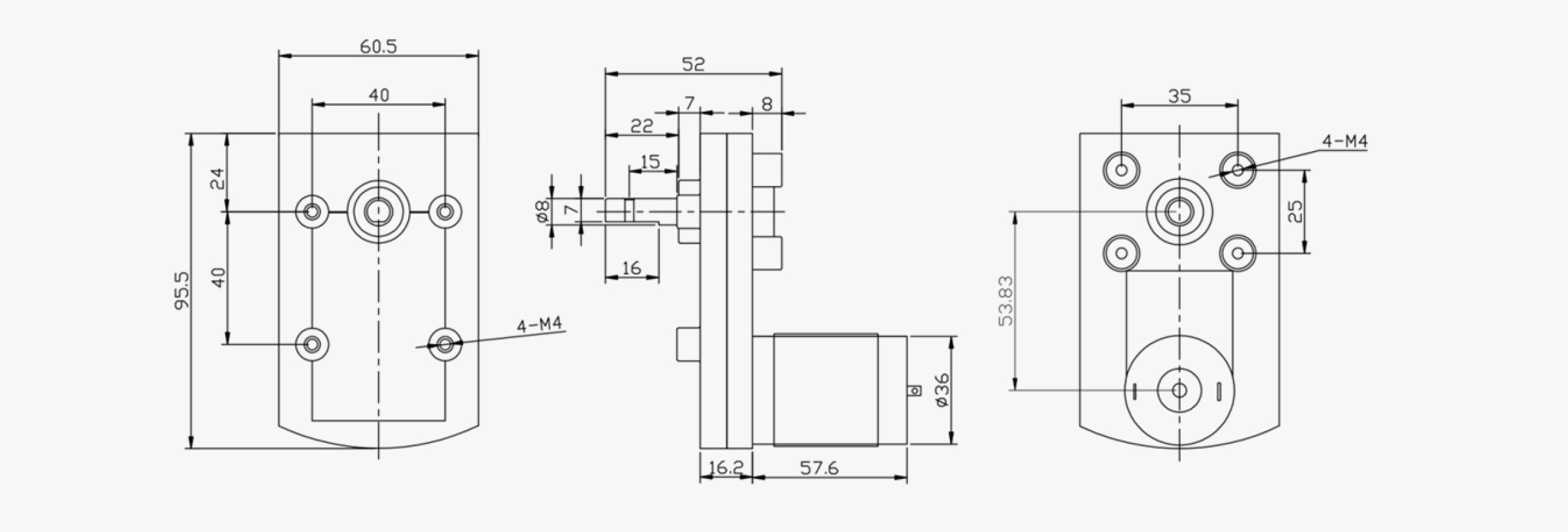

Dimensions
Performance parameter
| Model | RS-555/24V6000 | Volt:24V |
Direction :CCW
|
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.08 |
| 23450 | g-cm | 5476 | 0.65 |
| 11052 | g-cm | 4028 | 0.89 |
| 10708 | g-cm | 3075 | 2.68 |
| 21416 | g-cm | 0 | 5.28 |
Gearbox Parameters
|
Number of stages |
Reduction ratio |
Running torque |
Gear efficiency |
|---|---|---|---|
| 3 | 1:24/1:36/1:66/1:96 | 10-30kgf.cm | 75% |
| 4 | 1:150/1:176/1:276/1:396 | 30-60kgf.cm | 65% |
| 5 |
1:4000/1:626/1:836/1:1200 |
60-160kgf.cm |
59% |

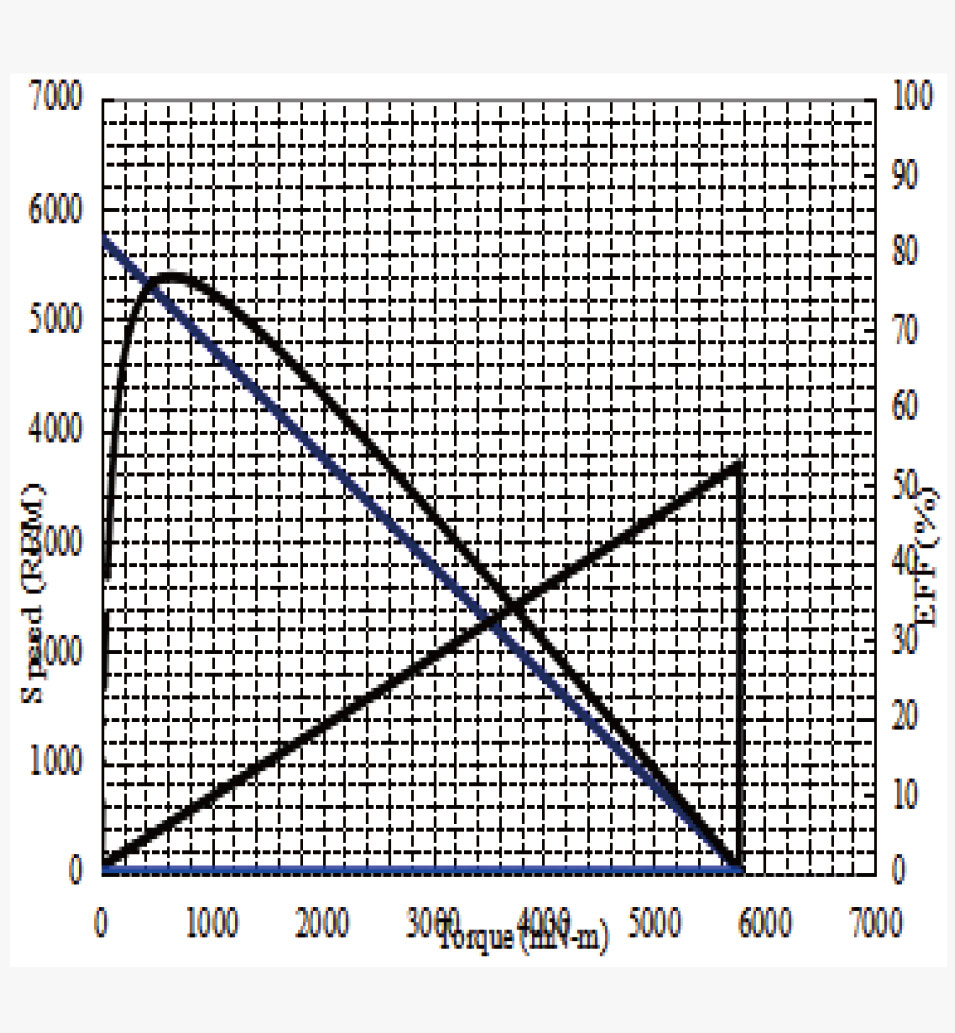

Performance graph
